Specification

  • Range: 0 to 199.9 ppm
  • Limits of detection: Na: ≤0.2 ppmK: ≤0.2 ppmCa: ≤15 ppmBa: ≤30 ppmLi: ≤0.25 ppm
  • Reproducibility: <1 % coefficient of variation for 20 consecutive samples using 10 ppm Na set to read 50
  • Linearity: < 2 % error when 3 ppm Na/K and 5 ppm Li are set to read 100
  • Stability: < 2 % drift over 5min when continuously aspirating 10 ppm sample set to 50.0. Specificity interference from Na/K and Li equal in concentration to test element will be <0.5%
  • Recorder output: Nominal 1.00 V for a reading of 100.0
  • Air supply (required): Moisture and oil free, 6 L/min @ 14 psi
  • Fuel: Propane, butane, natural gas or LPG
  • Size (W x H x D): 42 x 36 x 30 cm (16.5 x 14.2 x 11.8 in)
  • Warranty: 3 years

Accessories and Spares/Consumables

Type Product Name Product Code Standard Code
Accessories Air Compressor 38-0320/01 NA Visit Page
Accessories Barium Filter 38-0260 NA Visit Page
Accessories Calcium Filter 38-0250 NA Visit Page
Accessories Regulators for Natural Gas 38-0270 NA Visit Page
Accessories Regulators for Propane Gas 38-0280 NA Visit Page

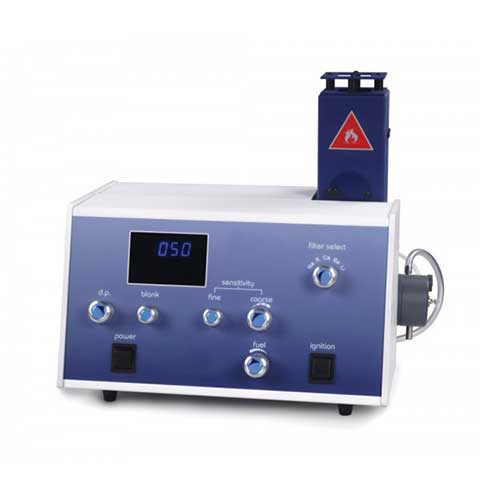

The Flame Photometer is built to a high specification and can be used with confidence for the most exacting analysis. It is a low temperature, single channel emission flame photometer with a large clear digital readout. The unit incorporates zero and gain controls with fine and coarse sensitivity, electronic ignition and automatic air supply regulation. The meter is supplied with sodium and potassium filters, fuel and air connections, nebuliser cleaning wire, hose connecting clips, auxiliary power plug, hexagon key, 2 lengths of drain tubing and a comprehensive instruction book and service manual. The unit is housed in a strong case.

Special Note: The Flame Photometer requires a source of moisture-free air at 6 litres/minute at a pressure of 1 kg/cm². It also requires a fuel source for the flame and a regulator (see accessories).

**Not available for sale in the USA**

For 220-240 V AC, 50-60 Hz, 1 ph
