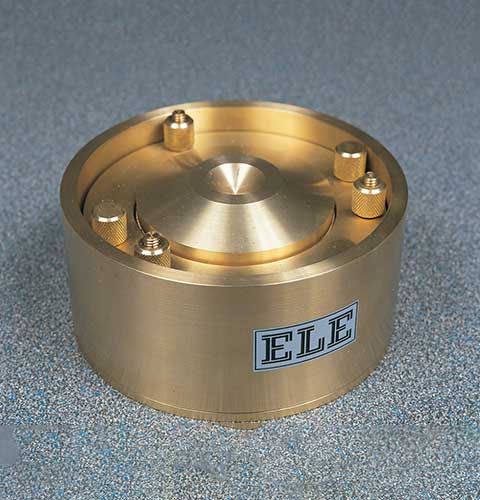

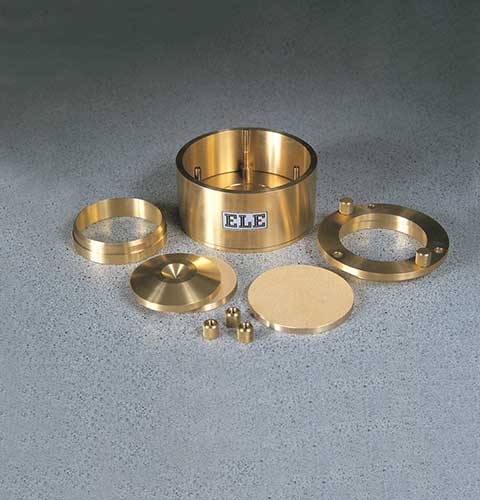

Consolidation Cell Complete 2.5 Inch Diameter Sample. Inc. Porous Discs and Cutting Ring.

Product code: 25-0479

Category: Consolidation Apparatus, Soils Sub Category: One-Dimensional Consolidation, Manual Consolidation

Product Group: Table Top Consolidation Apparatus, ASTM/AASHTO consolidation cells and accessories, Pneumatic Consolidation Apparatus, Fixed Ring Consolidation

Request Quote Download PDF

Specification

Application: ASTM
Specimen Dia: 2.5 inch
Specimen area: 4.909 inch²
Beam ratio: 10:1
Load kg: 1.55
Stress: 1000 lbf/ft²
Typical max stress: 103 200 lbf/ft²
Stress for 1 kg m²: 645 lbf/ft²

Accessories and Spares/Consumables

Type	Product Name	Product Code	Standard Code
Spare/Consumable	2.5 Inch Dia Upper and Lower Porous Stones for Use on EL25-0479 Series Cell.	25-0479/13	NA	Visit Page
Spare/Consumable	Cutting Ring for 25-0479	25-0482	NA	Visit Page
